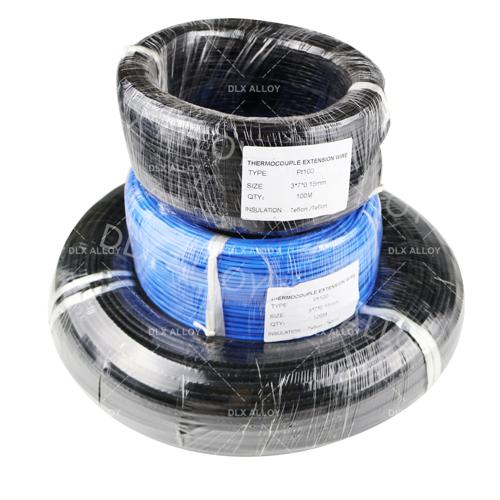

FEP/PVC Insulated Multipair Type K E J type Thermocouple Extension Wire
| Conductors | Solid or stranded thermocouple wire per ASTM E230 & ANSI MC96.1，10 to 30 AWG (2.6 to .25MM) |
| Insulation | Nominal .010″ (.25mm) flame retardant extruded fluoropolymer FEP |
| Construction | Twisted pairs |
| Pair Identification | Numbered polyester tapes |
| Individual Shield | 0.00135″ (.03mm) aluminum/polyester tape, 25% overlap |
| Individual Drain Wire | 22 AWG (.61MM) 7-strand tinned copper |
| Communication Wire (Optional) | 22AWG (.61mm) 7-strand copper insulated with nominal .015″ (.38mm) orange PVC (used in constructions 4 pair and larger) |
| Cable Shield | .002″(.05mm) aluminum/polyester tape, 25% overlap |
| Cable Drain Wire | 7-strand tinned copper, 2 AWG sizes smaller than conductor |
| Outer Jacket | Flame retardant extruded fluoropolymer FEP with nylon ripcord under jacket |
| Operating Temperature | -328F (-200C) to +400F (+200C) continuous |
| Limits of Error | Conforms to ASTM E230, IEC 584 and ANSI MC 96.1 |
| Color Code | Conforms to ASTM E230 and ANSI MC96.1 (International Color Codes Available) |
