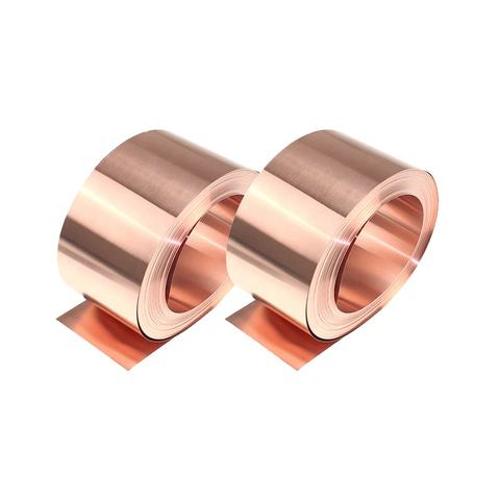

C5191 High precision copper Tin alloy phosphor bronze strip
| State | |
| Hardness(HV) | |
| Tension test | Bending test |
| thickness mm | |
| tensile strength MPa | |
| elongation % | |
| thickness | |
| angles | ID |
| 0 | |
| - | |
| 0.1-5.0 | |
| ≥315 | |
| ≥42 | |
| ≤1.6 | |
| 180° | 50% of thickness |
| 1/4H | |
| 100-160 | |
| 0.1-5.0 | |
| 390-510 | |
| ≥35 | |
| ≤1.6 | |
| 180° | 100% of thickness |
| 1/2H | |
| 150-205 | |
| 0.1-5.0 | |
| 490-610 | |
| ≥20 | |
| ≤1.6 | |
| 180° | 150% of thickness |
| H | |
| 180-230 | |
| 0.1-5.0 | |
| 590-685 | |
| ≥8 | |
| ≤1.6 | |
| 180° | 200% of thickness |
| EH | |
| 200-240 | |
| 0.1-0.2 | |
| 635-720 | |
| - | |
| - | |
| - | - |
| >0.2-5 | |
| ≥5 | |
| - | |
| - | - |
| SH | |
| ≥210 | |
| 0.1-5.0 | |
| ≥690 | |
| - | |
| - | |
| - | - |
